Commercial Reverse Osmosis (CRO)

CRO Series membrane systems deliver reliable, high-capacity water treatment for commercial and institutional needs. Designed to handle up to 8,000 gallons per day with minimal energy use, these systems combine advanced engineering with durable materials for maximum performance, efficiency, and ease of maintenance.

Featuring stainless steel booster pumps, ultra low-energy membranes, and rugged housings, CRO units are built to adapt to variations in feed water quality and temperature while ensuring consistent results. Pre-assembled and pre-wired, they’re ready for quick installation and service, making them the dependable choice for industries that can’t afford downtime.

Features & Options

Robust filtration systems designed to withstand the harshest industrial environments. Engineered for maximum water quality and operational reliability.

Features

  • Ultra low-energy standard membranes
  • Thermal overload motor protection
  • 1/2 and 1 HP motors
  • Pump operating pressure gauge
  • Inlet pre-filter pressure gauge
  • Outlet pre-filter pressure gauge
  • Concentrate flow meter
  • Concentrate recycle flow meter
  • Low-pressure switch
  • Solenoid valve with manual bypass
  • Stainless steel concentrate valve
  • Stainless steel recycle valve
  • Powder coated aluminum frame
  • Repressurization pump (Optional)
  • Storage tanks (Optional)
  • Electronic controller (Optional)

Markets

  • Horticulture
  • Hydroponics
  • Apartments & Condos
  • Assisted Nursing Facilities
  • Boiler Feeds
  • Cafeterias
  • Hospitals
  • Hospitality
  • Grocery
  • Laboratories
  • Restaurants
  • Schools & Universities
  • Car Washes

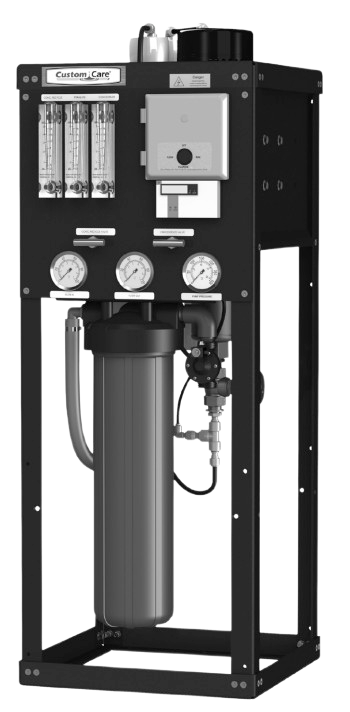

Commercial Reverse Osmosis System

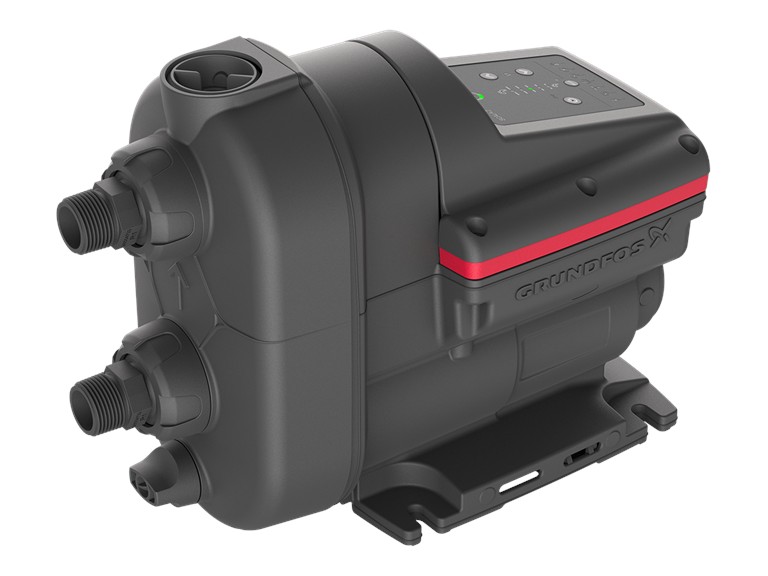

repressurization pump option

Repressurization Pump Option

The multi-stage pump option is quiet (47 dB), reliable, and has an automatic self-priming feature. The SCALA 2 pump can supply water to households and other applications alike.

  • Equipped with an electronic safety device - protects the pump from dry-running
  • Automatic start/stop - runs only when needed due to sensing pressure
  • Automatic and manual reset
  • Constant pressure and flow rate
  • Supplied with power cable and plug
  • 1” female inlet/outlet
  • Water-cooled motor

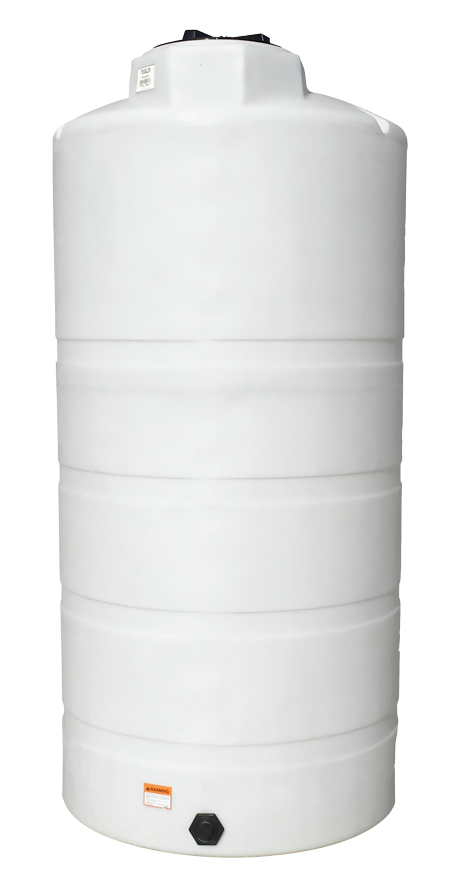

Tall cylindrical white plastic water storage tank with a top lid and bottom valve.

Storage Tank Options

Available in a variety of sizes to maneuver into the smallest of doorways, these rotational molded polyethylene tanks are built to last. Tanks include a self-venting lid and are pre-plumbed with liquid level float controls for reliable starting and stopping of the RO system.

Tank Size (gallons)
Tank Dimensions (diameter × ht)
Standard Drain
100
28" x 43"
1 1/4"
200
30” × 72”
2"
300
35” × 81”
2"
500
48” × 73”
2"

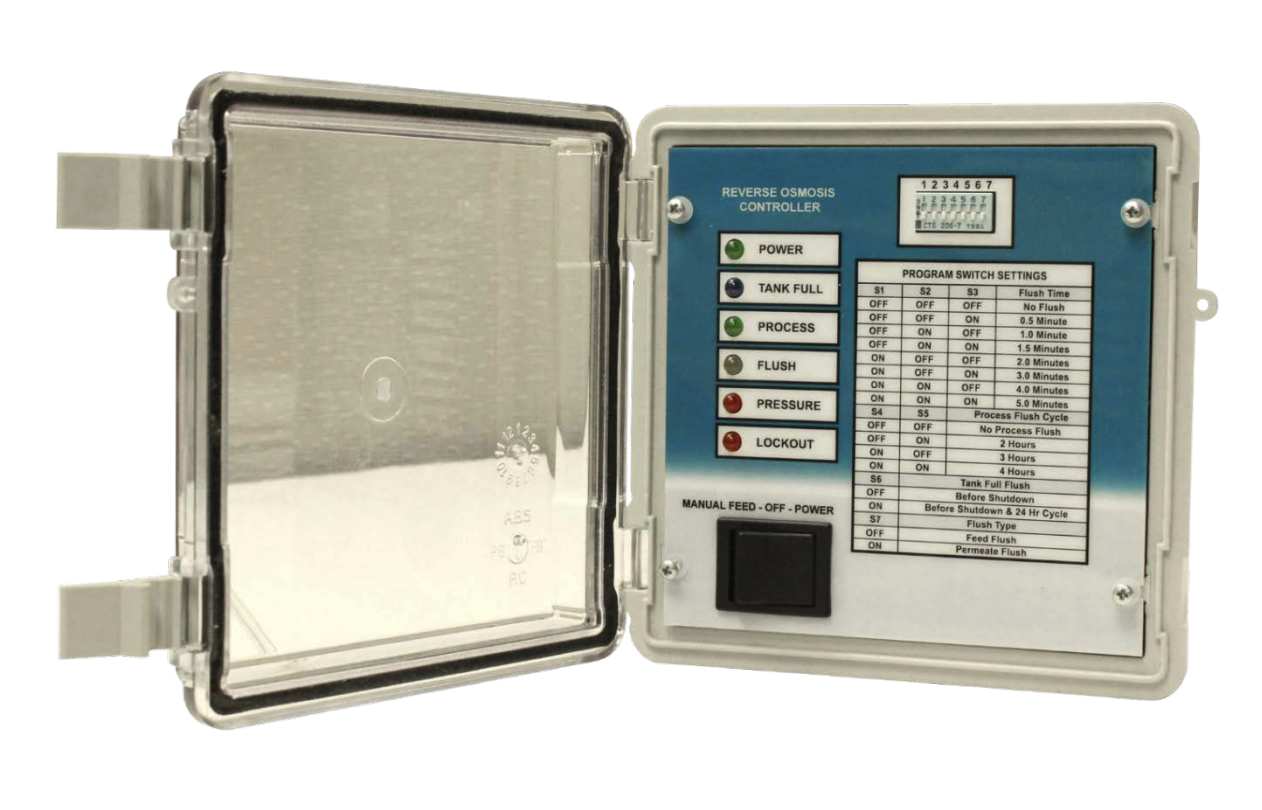

Electronic Controller Option

Electronic Controller Option

The C-23 electronic controller provides many additional features. Automatic membrane flush cycles can be enabled; process flush, tank full flush, power up flush, and lockout flushes are all optional settings.Inputs from the tank float, lockouts, and pressure are all displayed. Relay outputs to additional pumps or flush valves are also available.
